product description

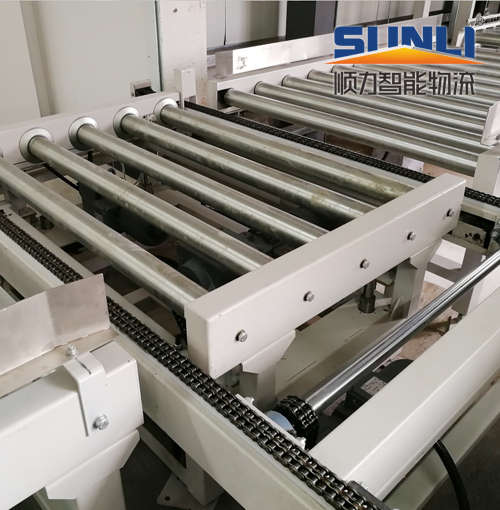

Transfer machine is an automated warehouse to make the goods cross the transport of equipment, a chain, drum, belt and so on. The transfer machine is composed of a lifting mechanism and a conveying mechanism. The two parts have separate powertrain and body, and the two parts are connected by connecting rod or linear bearing. The loader will transport the cargo unit on it to the top of the transport line and then cross the delivery.
product features
1) can cross the goods unit;
2) with the drum, chain conveyor line supporting the use of;
Product performance
No. | Item | Descrptions | ||
1 | Material | Q235B STEEL | ||
2 | Load carry | one load unit | ||
3 | Load size | Euro pallet, box 600*400 | ||
4 | Payload | 10~2000KG | ||
5 | Conveying speed | 12m/min | ||
6 | Function | chain,roller,belt | ||
7 | Accuracy | within 5mm | ||
8 | Communication | wire | ||
9 | Control | Semi-automated, manually, automatical | ||
10 | Power | phase 3,380V,50HZ | ||
11 | Eletricity | wire |
