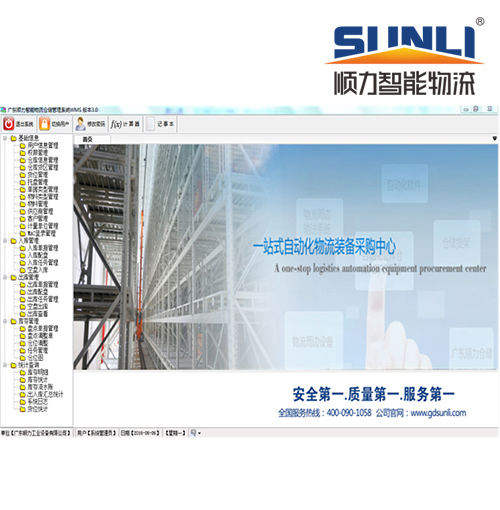

Main interface

The top of the form

     Automated logistics system based on reliable data sources and flexible control of the algorithm support, to automation, intelligent operations, reduce labor costs, improve efficiency, strengthen the level of information for enterprises to improve competitive advantage. Guangdong Shun Industrial Equipment Co., Ltd. has a mature automated logistics system development and implementation experience.

Smooth Intelligent Warehouse Control System (WCS):

     The Intelligent Warehouse Control System (WCS) is a layer of management control system between the WMS system and the PLC system. On the one hand, it interacts with the WMS system, accepts the instruction of the WMS system, and sends it to the PLC system, thus driving the library and the transmission equipment to produce the corresponding mechanical action. On the other hand, it will PLC system status and data in real time reflected in the interface, and to provide PLC system and transmission line manual debugging interface.

  WCS system real - time monitoring screen

    · Support global screen display;

    · Support partial screen display;

    · Support real-time dynamic picture;

    • Stop status, running status, fault status, disabled status, etc. are displayed in different colors or animations.

  parameter settings:

    · Read the current parameters of the device from the PLC;

    Provide the parameter setting interface;

    Write the modified device parameters to the PLC;

    Support parameter initialization function.

  Manual control:

    · Provide control functions such as start and stop, sealing, resetting, data removal and initialization of transmission and transmission equipment.

    Task management (background):

    · Read barcode information from PLC;

    Sending the barcode information and device number to the WMS to receive the route information returned by the WMS;

    Send task instructions (including route information) to the PLC;

    · Read the PLC task instruction return value to determine whether the instruction is completed;

    • If the task instruction return value is not read before the new bar code is read, the task is not completed; the task is not completed does not affect the subsequent task command.

  System log:

    · Task log: including the equipment number, task serial number, bar code information, direction information, the results of the implementation of the task initiation time, task completion time;

    · System fault log: including device type, fault code, fault description, fault level, failure time and other information;

    • Operation log (manual control): Includes control command, device code, execution result, instruction issuing time, instruction completion time, operator.

The advantages of the WCS system:

     · Unified equipment control platform, unified scheduling of different types of equipment, unified control, improve the efficiency of information transmission, reduce the input cost of information equipment;

     · Full consideration of the logistics characteristics of different industries, including the size of orders, customer habits and different industries special logistics operations requirements;

     The system architecture platform is flexible and scalable, can support the efficient integration of different devices, and supports the effective integration of the equipment control system and the host computer WMS system.
