Single column stacker

Your current location: Home >> Products >> Stacking machine

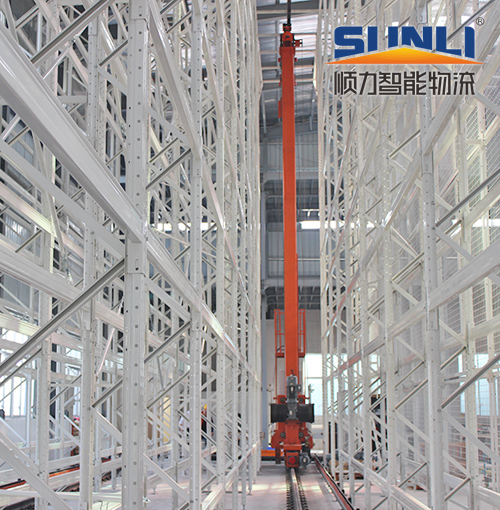

Single column stacker

  • Classification of the genus:Stacking machine

  • Click times:
  • Release date:2019/10/26
  • Online inquiry
Detailed introduction

product description

     Single column stacker is the core of automated warehouse equipment, work not only requires accurate positioning fast, stable and reliable, but also must be safe and secure. The stacker consists of upper and lower beams, columns, loading stands, counterweight and various telegraph control elements. The stacker relies on the host to walk, and the cargo stand is lifted and the fork is extended to move the unit cargo in three directions of the warehouse, In order to achieve the task of placing the goods into / out of the shelves, the working capacity of the stacker determines the maximum capacity of the entire automated warehouse.




product features

     1. Structure can be divided into single column stacker, double column stacker;

     2. According to the different ways to pick up can be divided into single-span stacker and double-extension stacker;

     3. Stacker and shelf with the use of up to 50 meters, the track can have a straight track, curved rail, fork rail;

     4. Stacker in the positioning of the use of laser, bar code positioning to ensure its accuracy;

     5. Speed control on the use of closed-loop frequency control or servo motor, so that smooth delivery, security;

     6. Stacker in the use of electrical safety protection, such as mechanical stoppers, safety gears, torque limiter, emergency stop switch, speed limiter, broken chain (rope) protection, etc.

     7. To ensure its safety performance stacking machine all electrical components are used high-quality into the brand products;

Product performance

序号

项  目

描     述

1

主体材质

Q235,铝型材

2

搬运单元数量

一般一次搬运一个单元,或按要求制做

3

搬运单元尺寸

标准托盘1200*800mm,1200*1000mm或按要求制做

4

单元货物重量

10~2000kg或按要求制做

5

运行速度

5~240m/min,变频调速

6

提升速度

5~50m/min,变频调速

7

出叉速度

40m/min

8

货叉品牌

米亚斯或同级品牌或自己生产

9

定位精度

±5mm

10

定位方式

激光认址或条码定位

11

控制方式

手动,半自动,联机全自动

12

电源电压

国内标准工频工业用电,3相,380V,50Hz

13

供电方式

滑触线

14

通讯方式

有线
