Heavy stacker

 product description

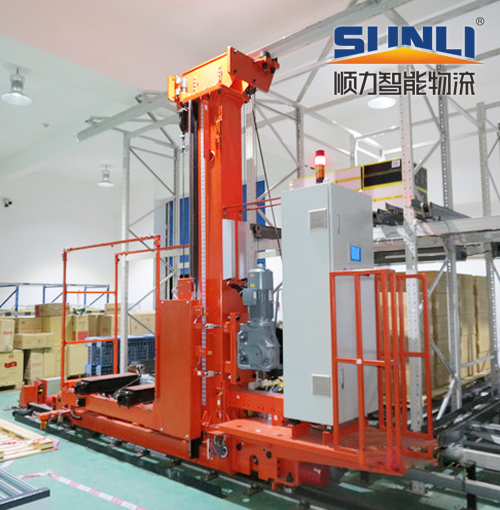

    Heavy-duty stacker is the core equipment of the automated warehouse, which not only requires accurate, fast and reliable positioning, but also must be safe and secure. The stacker consists of upper and lower beams, columns, loading stands, counterweight and various telegraph control elements. The stacker relies on the host to walk, and the cargo stand is lifted and the fork is extended to move the unit cargo in three directions of the warehouse, In order to achieve the task of placing the goods into / out of the shelves, the working capacity of the stacker determines the maximum capacity of the entire automated warehouse.

    Customer Case:

    Customer Name: Liaoyuan Tobacco Distribution Center

    Product Name: Three-dimensional library

    Storage unit: tray

    Storage items: merchandise smoke

    Number of roadways / stacking machine number: 1/1

    Number of cargo spaces: 60

    Unit carrying (kg): 300

    Unit size (mm): 1500 × 650 × 1400

    Peripheral equipment: conveyor line, sorting line

    Smooth three-dimensional library advantages and functions:

    advantage:

    1. High-level shelf storage, saving inventory area, improve space utilization. At present, the world's highest three-dimensional warehouse has reached a height of 50m, the unit area of storage capacity of up to 7.5t / m ?, 5-6 times the general warehouse.

    2. Automatic access, operation and processing speed, at the same time, can be easily incorporated into the enterprise's material system.

    3. Computer control, easy to inventory and inventory, a reasonable reduction in inventory.

    Function: 1. Receipt. The warehouse receives a variety of materials, semi-finished or finished products from suppliers or production plants for production or processing.

    Inventory. Store the unloaded goods to the location specified by the automation system.

    Pick up According to the demand situation from the Treasury to obtain the customer needs the goods. Usually take first-in first-out (FIFO) mode.

    4. Shipping. Will be removed from the goods according to strict requirements to customers.

    5. Information inquiry. You can check the information about the warehouse at any time, including inventory information, job information, and other information.

    product features

    1. Structure can be divided into single column stacker, double column stacker;

    2. According to the different ways to pick up can be divided into single-span stacker and double-extension stacker;

    3. Stacker and shelf with the use of up to 50 meters, the track can have a straight track, curved rail, fork rail;

    4. Stacker in the positioning of the use of laser, bar code positioning to ensure its accuracy;

    5. Speed control on the use of closed-loop frequency control or servo motor, so that smooth delivery, security;

    6. Stacker in the use of electrical safety protection, such as mechanical stoppers, safety gears, torque limiter, emergency stop switch, speed limiter, broken chain (rope) protection, etc.

    7. To ensure its safety performance stacking machine all electrical components are used high-quality into the brand products;

Product performance

Smooth high-level shelf performance characteristics:

    1. In the case of uniform pressure, the deflection of the beam is 1/200 of the length of the beam, and the maximum permissible deflection of the column is 1/1000 of the height. The safety factor is 1.65;

    2. Column spacing of 75mm / 50mm, the beam can be arbitrarily adjust the height of this spacing, unique diamond-shaped hole design, can be used upside down, and is equipped with safety plugs to prevent the movement of the top of the beam.
